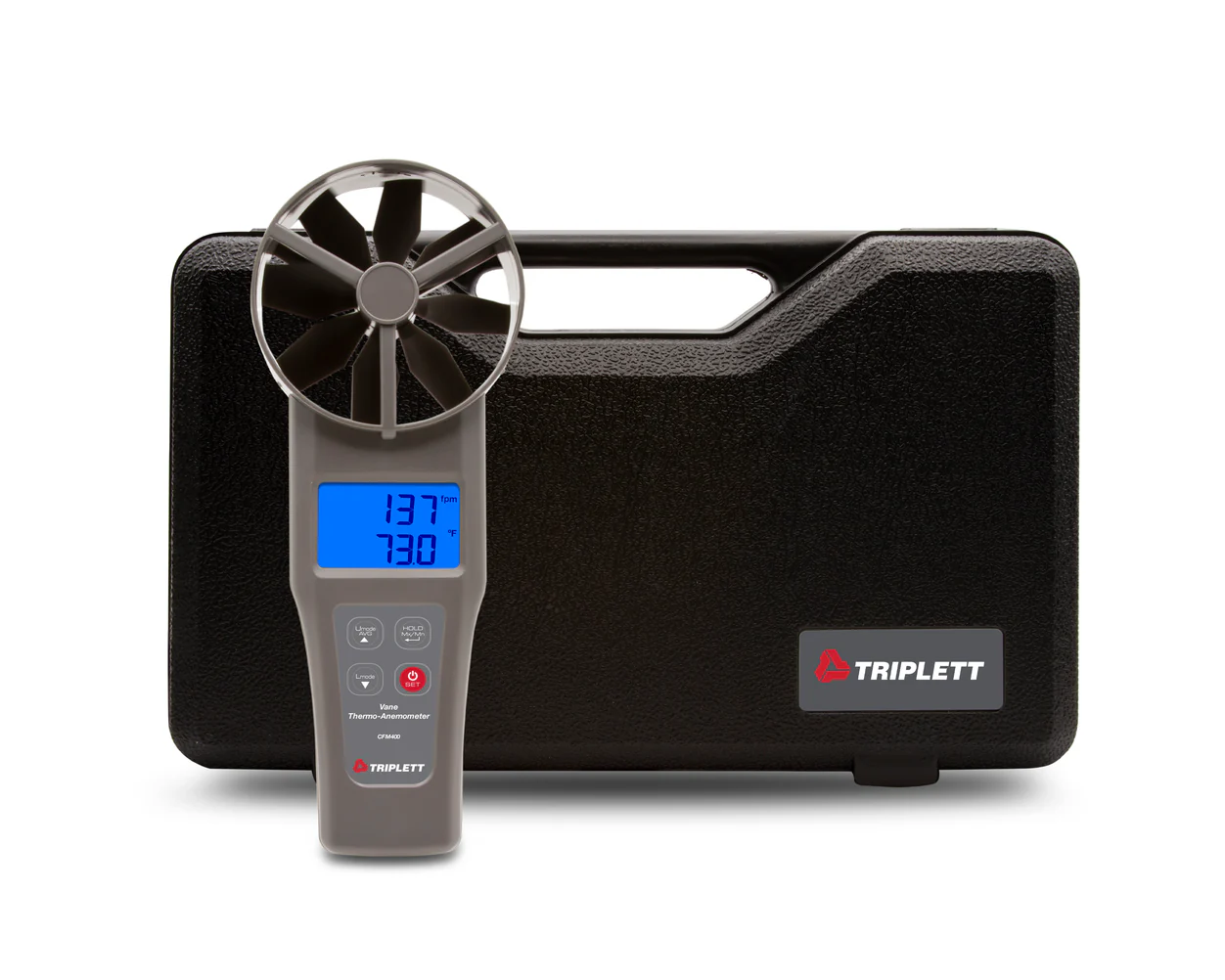

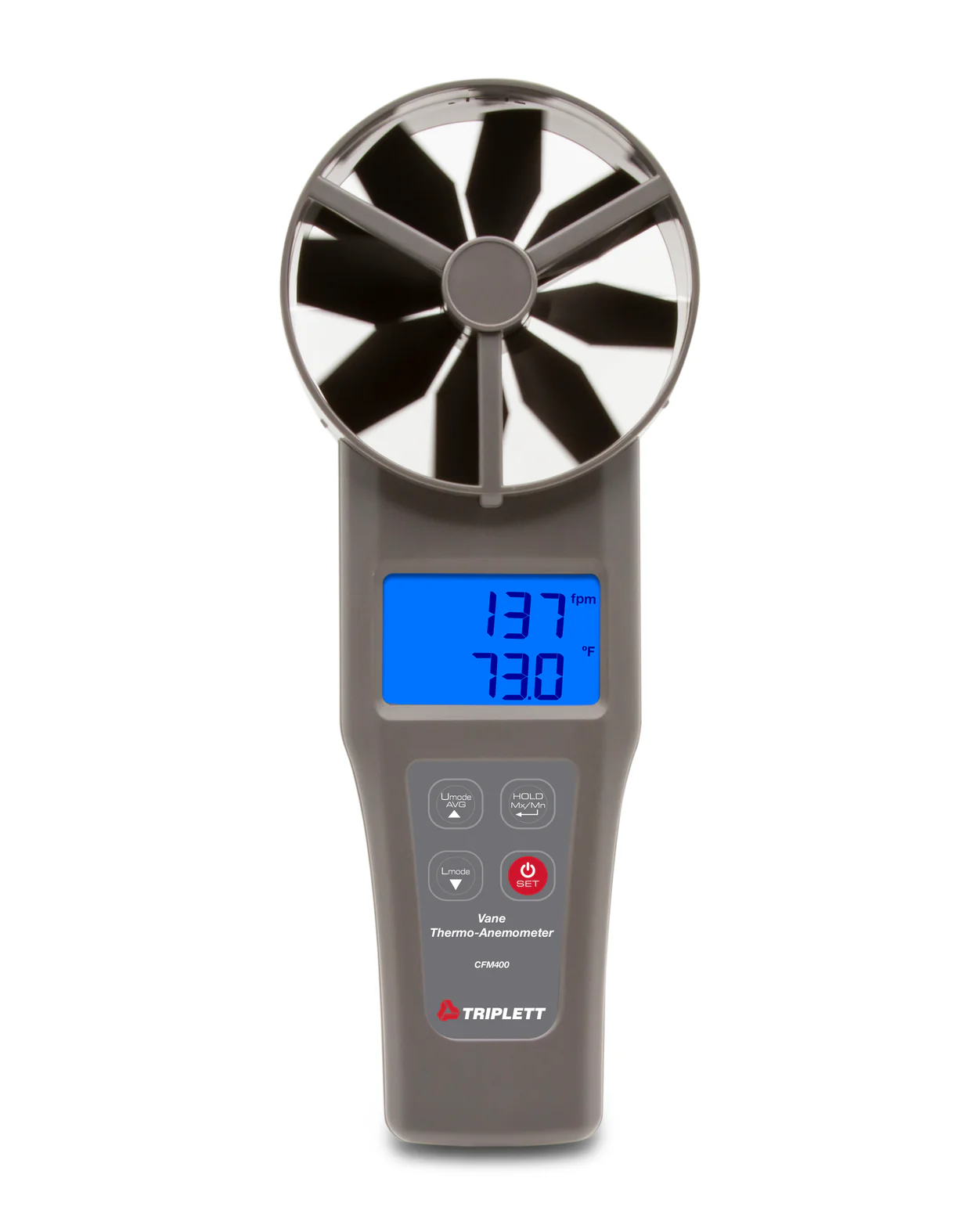

4" (100mm) Large Vane CFM/CMM Thermo-Anemometer (CFM400)
BRAND : TRIPLETT
For More information Reach Us At : sales@syncwavecom.com
The Triplett Model CFM400 4" (100mm) Large Vane CFM/CMM Thermo-Anemometer measures Air Velocity up to 5900ft/min (30m/s), Air Flow (Volume) to 99999 CFM/CMM, and Air Temperature 140°F/60°C) for use in HVAC System installation and maintenance, cleanrooms, kitchen exhaust systems, wind power monitoring, construction, sailing/boating, vehicle aerodynamics and many other applications. Measurements are displayed on a dual backlit easy-to-read LCD display. Min/Max recalls highest and lowest readings plus Multi-Point Average and Timed Average modes. Data Hold freezes the reading on the display when taking measurements in areas where the display cannot be easily viewed. The auto power off (with disable) function conserves battery life. Includes 4 AAA batteries and hard carrying case. 1 year warranty.
CFM400-NIST Comes with Certificate of traceability to NIST standards
Please add 11 business days lead-time for the NIST calibration process
Measures Air Velocity, Air Flow (volume) and Temperature
Dual backlit easy-to-read LCD display
Multi-Point Average and Timed Average modes
Min/Max recalls highest and lowest readings
Data Hold freezes the display
Auto power off with disable
1 year warranty
CFM400 | |
Air Velocity | Range (resolution) |
| 40 to 5900 ft/min (1ft/min) |
| 0.2 to 30.00m/s (0.01m/s) |
Accuracy | ±1.5% |
Air Flow | Range (resolution) |
| 0 to 99999CFM (0.1CFM) |
| 0 to 99999CMM (0.1CMM) |
Air Temperature | -4 to 140°F/-20 to 60°C (0.1°F/°C) |
Accuracy | ±1.1°F/0.6°C |
Power | 4 x AAA batteries |
Dimensions | 10.6 x 4.2 x 2" (269 x 106 x 51mm) |
Weight | 1.6lbs (725g) |
