5" Display, High Definition Articulating Videoscope, 6mm camera, 1m cable - (BR750)
Borescopes & Inspection Cameras
BRAND : TRIPLETT
For More information Reach Us At : sales@syncwavecom.com

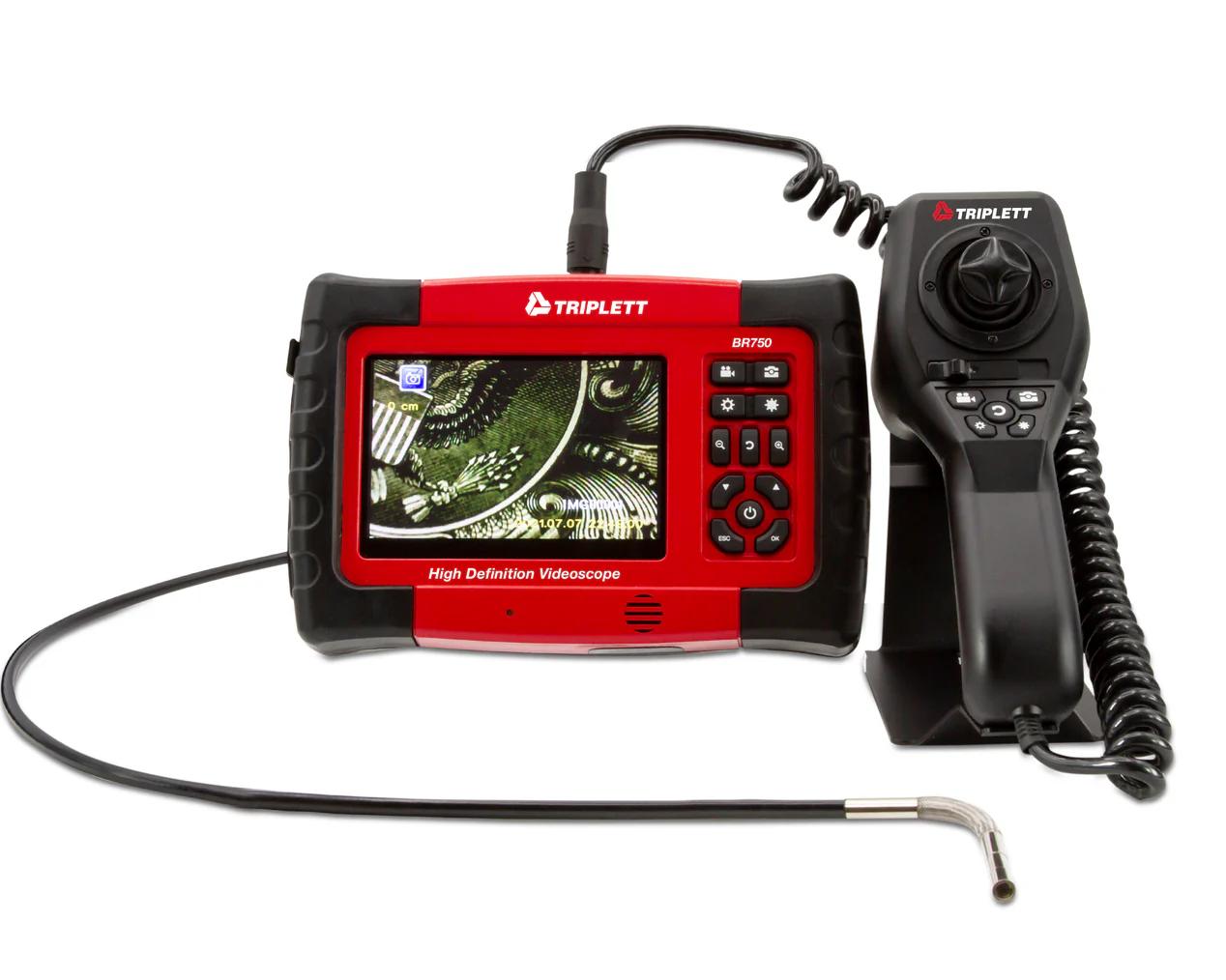

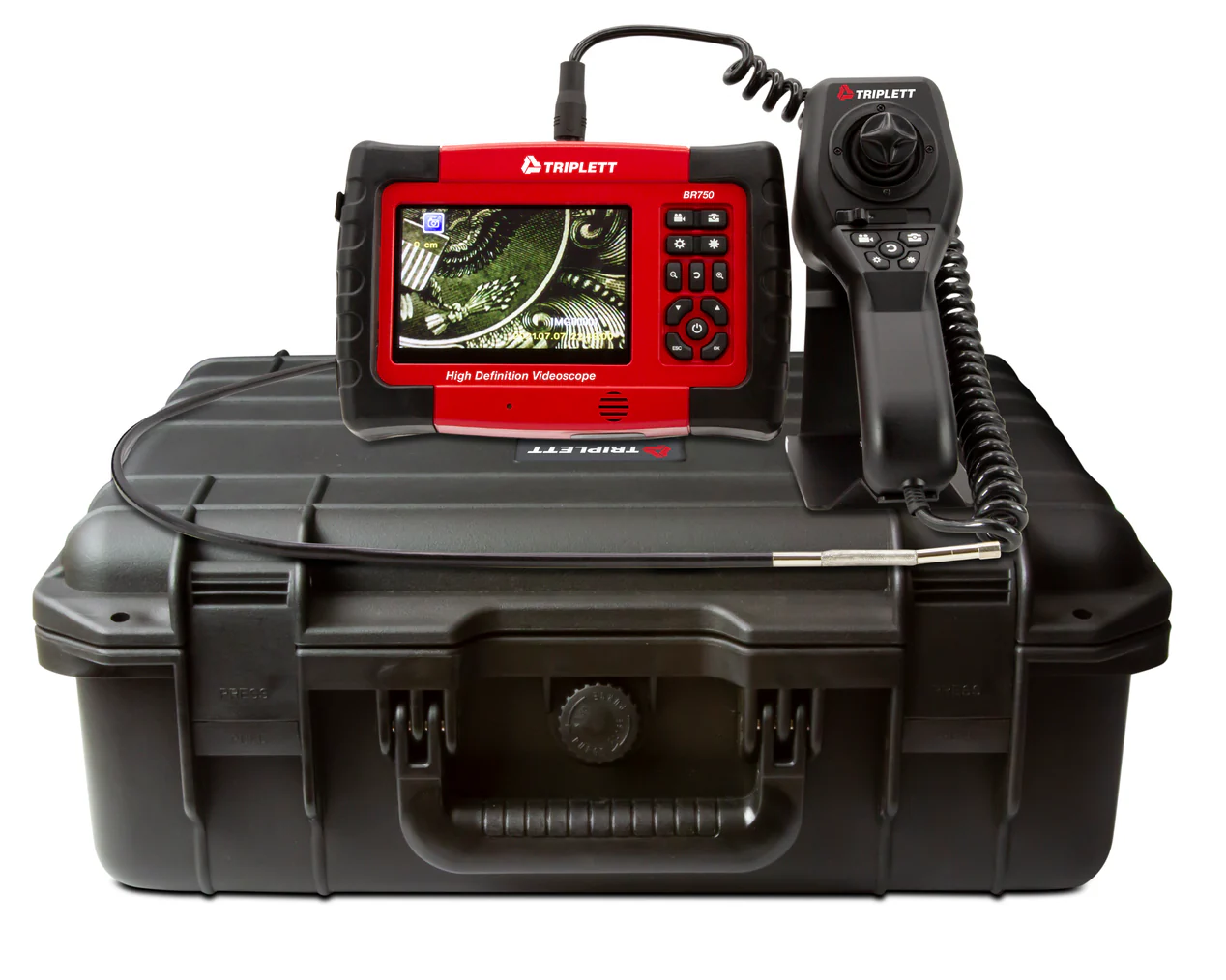

The Triplett BR750 High Definition Articulating Videoscope allows you to see behind walls and down drains which can save time and money on any repair or installation. It has a 6mm waterproof (IP67) camera (1m cable) with a joystick controlled articulating probe that adjusts 135° in all directions. 4 adjustable LEDs can illuminate totally darkened areas for inspection. It features a 5" Color TFT LCD monitor with 800 x 480 resolution, 2X Zoom, Mirror image mode (vertical, horizontal, or both), a built-in clock/calendar, and the ability to record video (.ASF) and images (.JPG). View captured video/images on the display or transfer to your PC using the USB interface or removable SD card (32GB max). You can store up to 150k images on the included 8GB SD card. The SWR (Snapshot while recording) function can be used during video recording or playback. The Photo Compare function displays 2 images on the screen at the same time. An audio/ video output jack can be used for external viewing on a a larger display (NTSC or PAL). Includes Videoscope, handset with joystick controlled articulating probe, 3.7V rechargeable battery, cleaning kit, 100-240V AC adapter/charger with 4 connectors (US, UK, EU, AUS), SD card, USB and AV cables and heavy duty carrying case. 1 year warranty.
Joystick controller and waterproof (IP67) 6mm camera
Articulating probe with joystick adjusts 135° in all directions
4 adjustable LEDs can illuminate totally darkened areas for inspection
5" Color TFT LCD monitor with 800 x 480 resolution
2X Digital Zoom
Mirror image mode (vertical, horizontal, or both)
Record video (.ASF) and images (.JPG)
SWR (Snapshot while recording) function during video recording or playback
View captured video/images on the display or transfer to your PC using the USB interface or removable SD card (32GB max)
Photo Compare function displays 2 images on the screen at the same time
| BR750 |
Camera |
|
Diameter | 6mm |
Dimensions (Articulating Probe) | Handle: 7.5 x 2.8 x 6.5" (191 x 71 x 165mm) |
Field of View | 60° |
Depth of View | 0.8~2.4" (20~60mm) |
Resolution | 640 x 480 pixels |
Articulation | 135° in all directions |
Display Unit |
|
Display | 5" Color TFT (800 x 480 pixels) |
Interface | mini USB/AV output |
Video Output Format | NTSC or PAL |
Storage | 8G SD Card included (up to 16GB max) |
Still Image Format | JPEG (640 x 480) |
Video Recording Format | ASF (640 x 480) |
Power | 3.7V Li-Po Battery or AC Adapter |
Dimensions (Main Unit) | 7.9 x 5 x 2.3" (201 x 127 x 58.4mm) |
Weight | 2lbs (0.9kg) |
