Borescope Inspection Camera 5.5mm, 2M Cable - (BR260)
BRAND : TRIPLETT
For More information Reach Us At : sales@syncwavecom.com

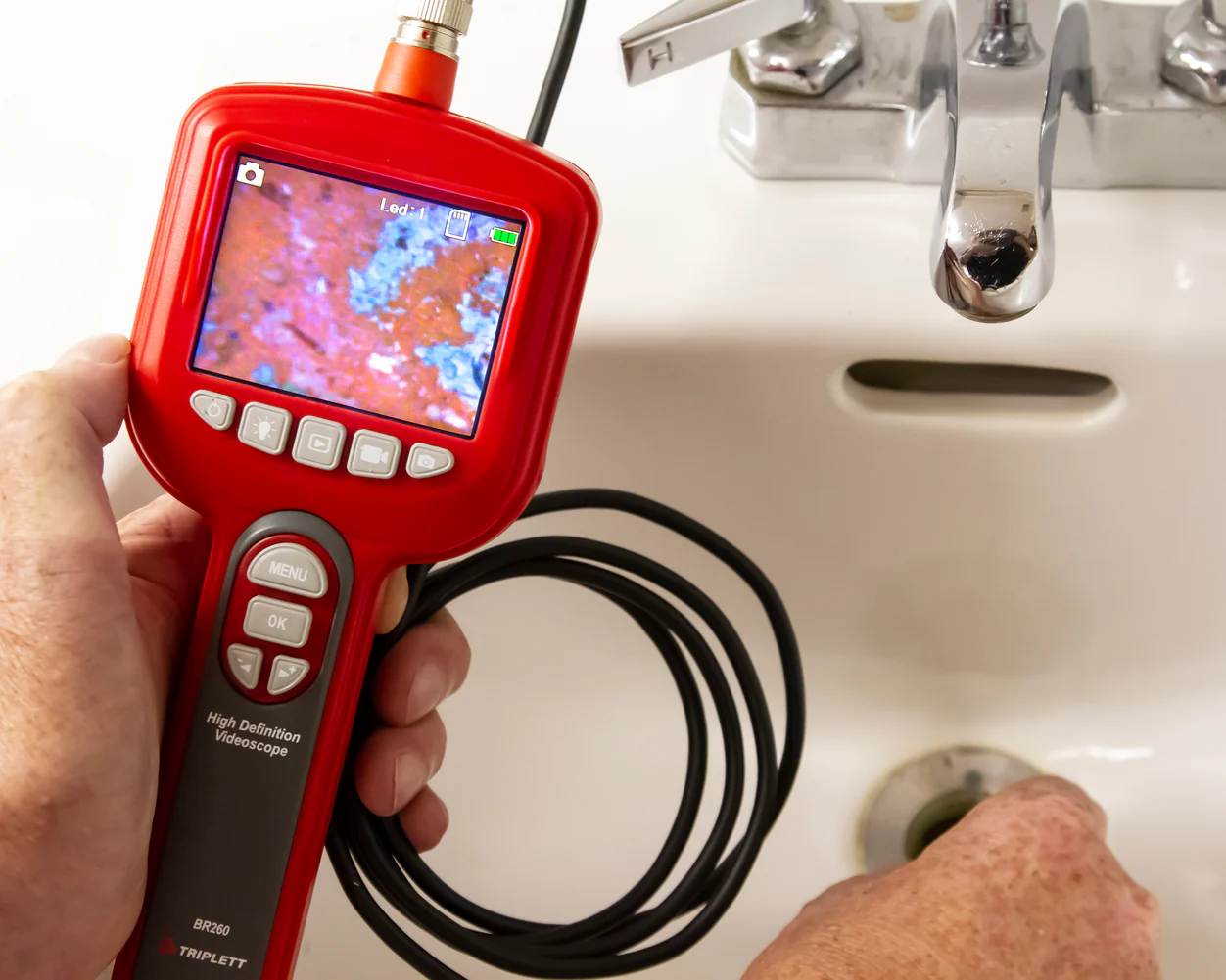

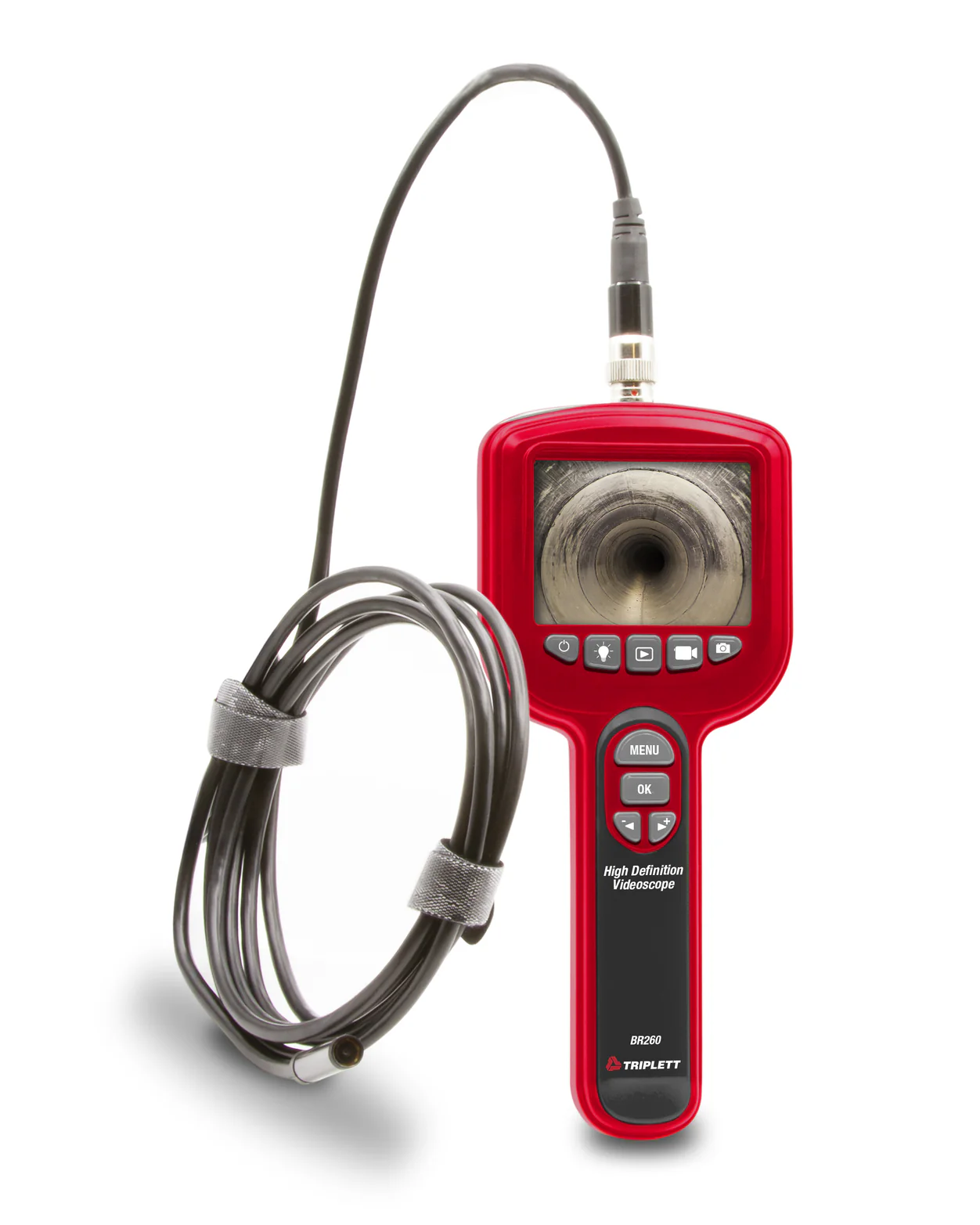

The Triplett BR260 High Definition Videoscope inspection camera allows you to see behind walls and down drains which can save time and money on any repair or installation. It has an 5.5mm camera lens - waterproof (IP67) camera with 6 adjustable LEDs with 3 brightness levels and a built-in auxilliary light illuminates darkened work areas for inspection. It features a 3" Color LCD monitor with 1920 x 1080 resolution, 3X zoom, and 180° screen view rotation. It has a built-in clock/calendar and can record video (.AVI) and images (.JPG) with a freeze function during live viewing. You can view captured video/images on the display or transfer to your PC using the USB interface or removable SD card (64GB max). The BR260 can store up to 4k images on the included 4GB microSD card and supports 8 languages (English, French, German, Italian, Japanese, Russian, Simplified Chinese, Traditional Chinese). Operates on 4 x AA batteries (not included). Comes complete with Videoscope, 5.5mm camera probe with 2m cable, SD card, USB cable, and camera accessories (magnet, hook, mirror).
Waterproof (IP67) 5.5mm camera lens
3" Color LCD monitor with 1920 x 1080 resolution
6 adjustable LEDs with 3 brightness levels
Built-in auxilliary light illuminates darkened work areas for inspection
Screen view rotates 180°
3X zoom
Built-in clock/calendar
View captured video/images on the display or transfer to your PC using the USB interface or removable microSD card (64GB max)
Store up to 4k images on the included 4GB microSD card
Supports 8 languages

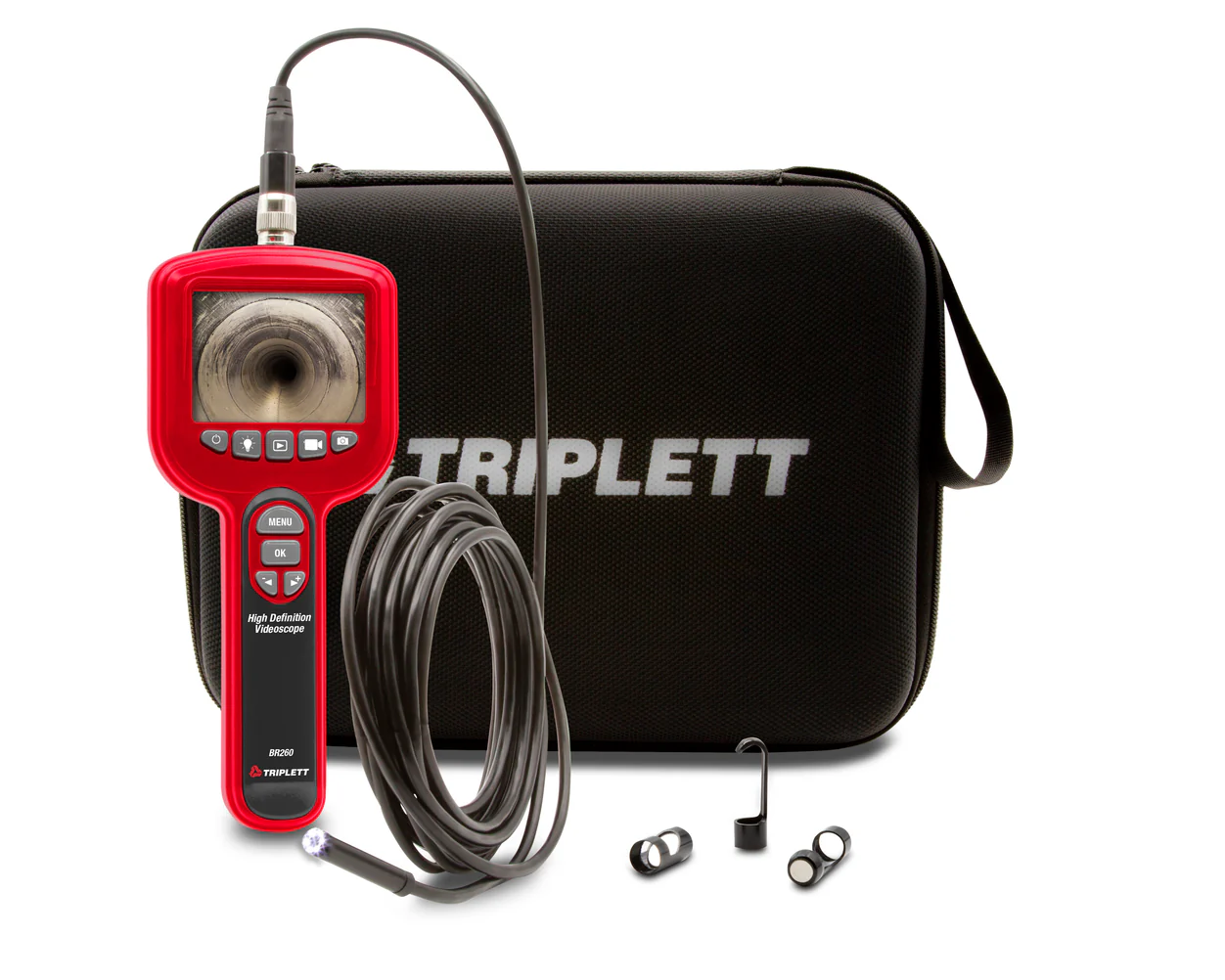

Includes 5.5mm camera probe with 2m cable, 5V Li-Po rechargeable battery, microSD card, USB cable, camera accessories (magnet, hook, mirror) and case
Model | BR260 |
Camera | Single (Forward View) |
Diameter | 5.5mm camera lens/5.5mm Camera head |
Field of View | 60° |
Depth of View | 1.2 to 4" (3cm to 10cm) |
Resolution | 1920 x 1080 |
Display Unit |
|
Display | 3" Color (1920 x 1080) |
Image Zoom | 3X |
Video Output Format | NTSC |
Storage | 4G SD Card included (up to 64GB max) |
Still Image Format | JPG (1270 x 1080) |
Video Recording Format | AVI (1920 x 1080) |
Interface | USB |
Power | (4) AA batteries (not included) |
Dimensions | 9 x 6.7 x 3.1” (230 x 170 x 80mm) |
Weight | 1.8lbs (0.8kg) |
Q. Would the camera on these be resistant to jet fuel? Could it be submerged in jet fuel without damaging the camera?
A. Yes, it can be used for inspection inside a jet engine (jet fuel) but the if the jet fuel temperature is under 10°C (50°F) then it won’t work for a very long time. Also, after finishing the inspection, We suggest you use some alcohol to clean the camera.
