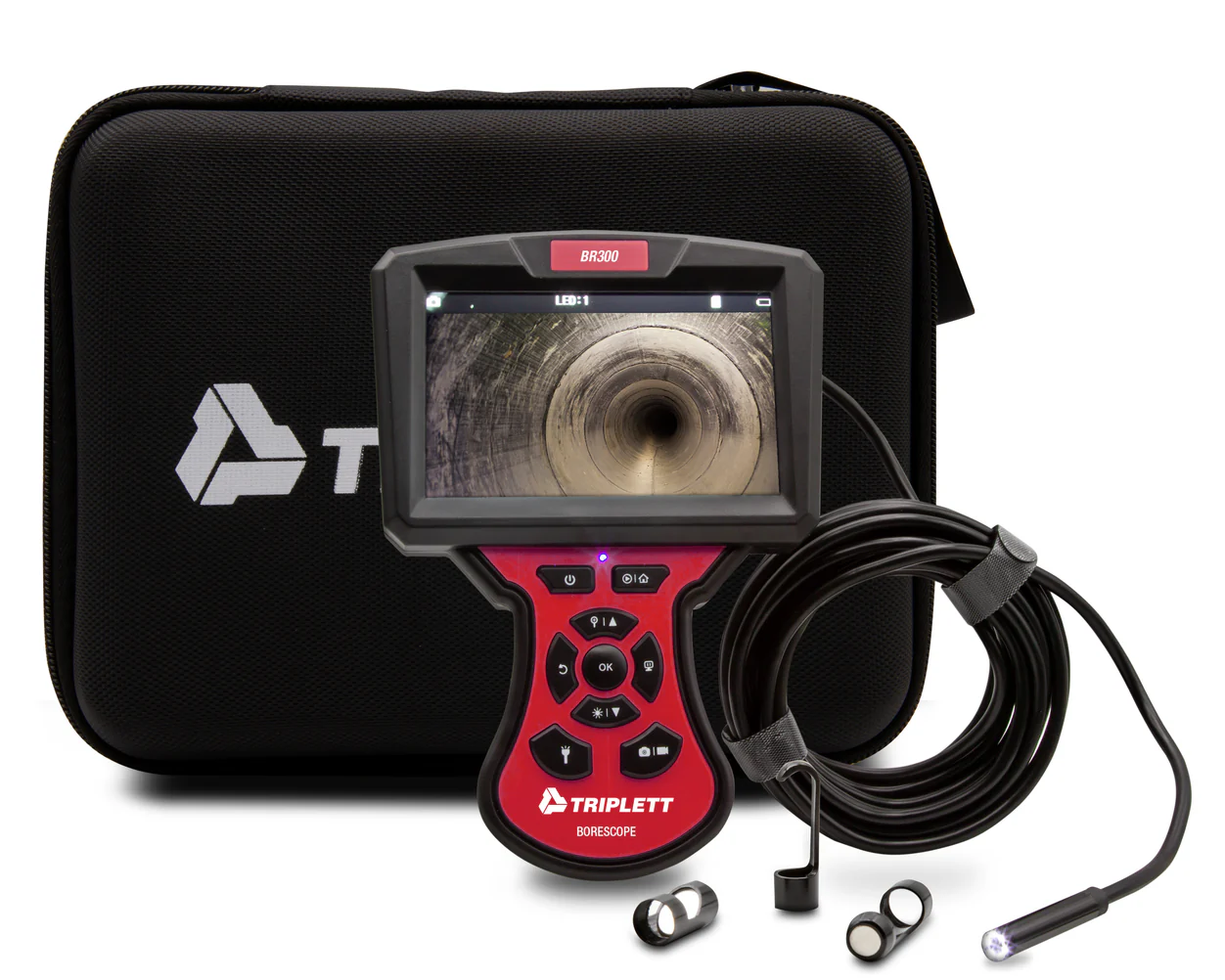

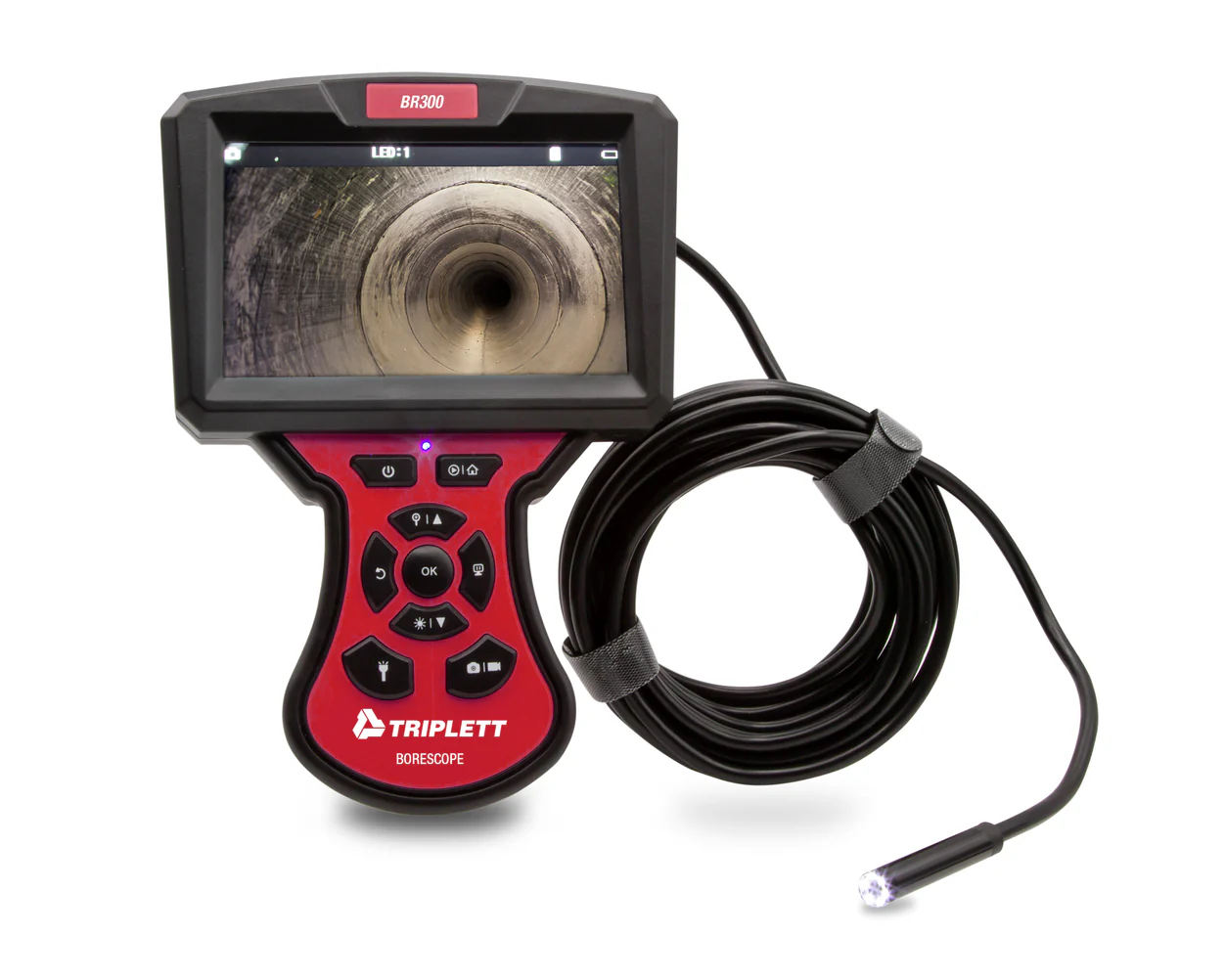

High Definition Borescope Inspection Camera 5.5mm, 5M Cable - (BR300)
BRAND : TRIPLETT
For More information Reach Us At : sales@syncwavecom.com

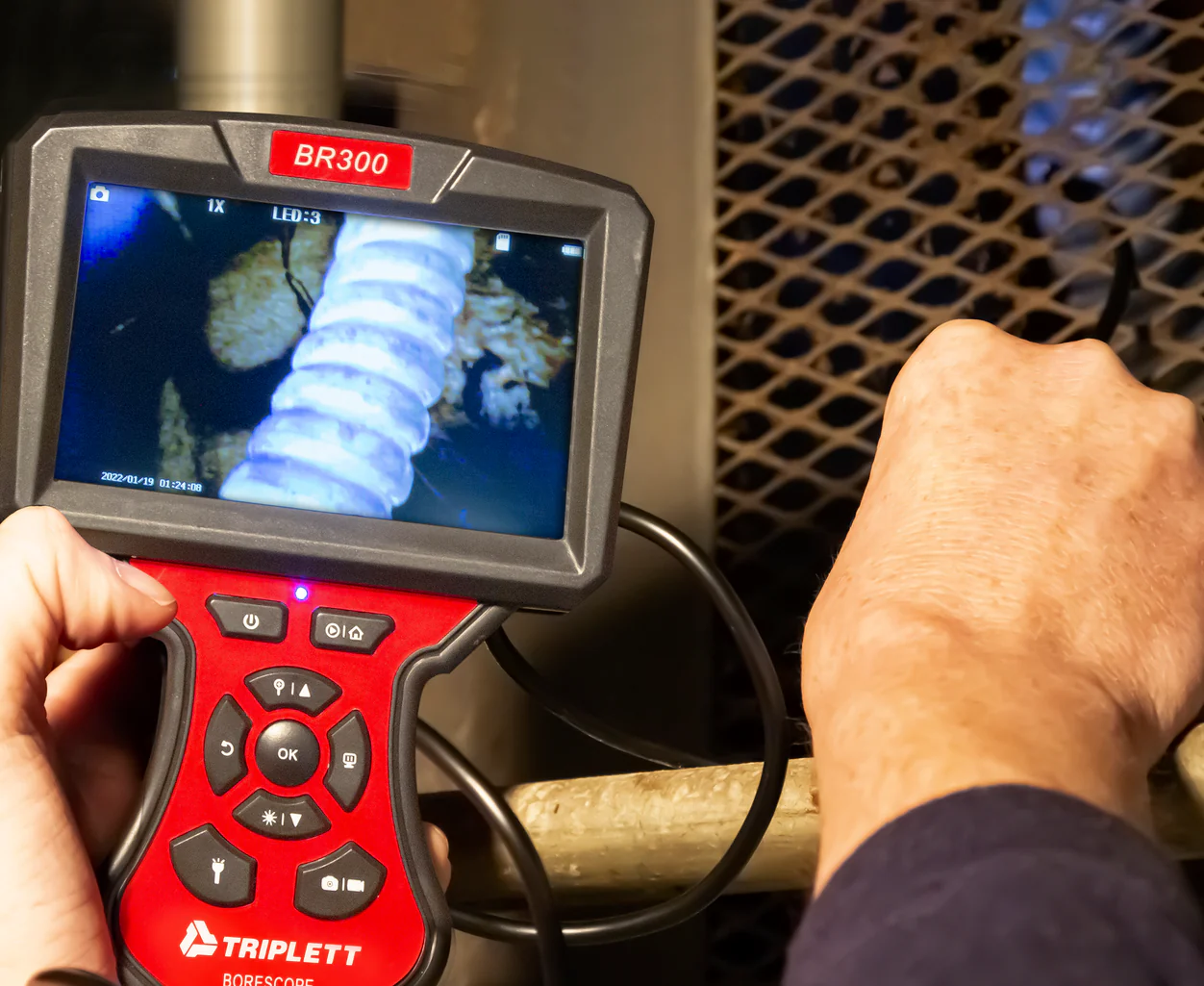

The Triplett BR300 High Definition Videoscope inspection camera allows you to see behind walls and down drains which can save time and money on any repair or installation. It has an 8mm camera head waterproof (IP67) camera with 8 adjustable LEDs with 3 brightness levels and a built-in auxilliary light illuminates darkened work areas for inspection. It features a 5" Color LCD monitor with 1920 x 1080 resolution, 3X zoom, and 180° screen view rotation. It has a built-in clock/calendar and can record video (.AVI) and images (.JPG) with a freeze function during live viewing. You can view captured video/images on the display or transfer to your PC using the USB interface or removable microSD card (64GB max). The BR300 can store up to 4k images on the included 4GB microSD card and supports 8 languages (English, French, German, Italian, Russian, Japanese, and Chinese). It comes complete with Videoscope, 5.5mm camera probe with 5m cable, 5V Li-Po rechargeable battery, microSD card, USB cable, and camera accessories (magnet, hook, mirror).
Waterproof (IP67) 5.5mm camera
5" Color LCD monitor with 1920 x 1080 resolution
8 adjustable LEDs with 3 brightness levels
Built-in auxiliary light illuminates darkened work areas for inspection
Screen view rotates 180°
3X zoom
Built-in clock/calendar
View captured video/images on the display or transfer to your PC using the USB interface or removable microSD card (64GB max)
Store up to 4k images on the included 4GB microSD card
Freeze function during live viewing
Includes 5.5mm camera probe with 5m cable, 5V Li-Po rechargeable battery, microSD card, USB cable, and camera accessories (magnet, hook, mirror)
Models | ||
Camera | Single (Forward View) | Dual (Forward and Side View) |
Camera Head | 5.5 mm | 5.5 mm |
Field of View | 60° | 60° |
Depth of View | 1.6" (4cm) | 1.6" (4cm) |
Resolution | 1920 x 1080 | 1920 x 1080 |
Display Unit |
|
|
Display | 5" Color (1920 x 1080) | 5" Color (1920 x 1080) |
Image Zoom | 3X | 3X |
Video Output Format | NTSC or PAL | NTSC or PAL |
Storage | 4G microSD Card included | 4G microSD Card included |
Still Image Format | JPEG (1920 x 1080) | JPEG (1920 x 1080) |
Video Recording Format | AVI (1920 x 1080) | AVI (1920 x 1080) |
Interface | USB | USB |
Power | 5V Li-Po Battery | 5V Li-Po Battery |
Dimensions | 8.5 x 4.5 x 1.5” | 8.5 x 4.5 x 1.5” |
Weight | 0.9lbs (0.4kg) | 0.9lbs (0.4kg) |
Q: Can the BR300 model borescope inspection camera be connected to a computer monitor for real-time display?
A: The BR300 model does not support connection to an external monitor for real-time display. It comes with a built-in portable monitor on the handle of the unit for viewing.Q. Would the camera on these be resistant to jet fuel? Could it be submerged in jet fuel without damaging the camera?
A. Yes, it can be used for inspection inside a jet engine (jet fuel) but the if the jet fuel temperature is under 10°C (50°F) then it won’t work for a very long time. Also, after finishing the inspection, We suggest you use some alcohol to clean the camera.
