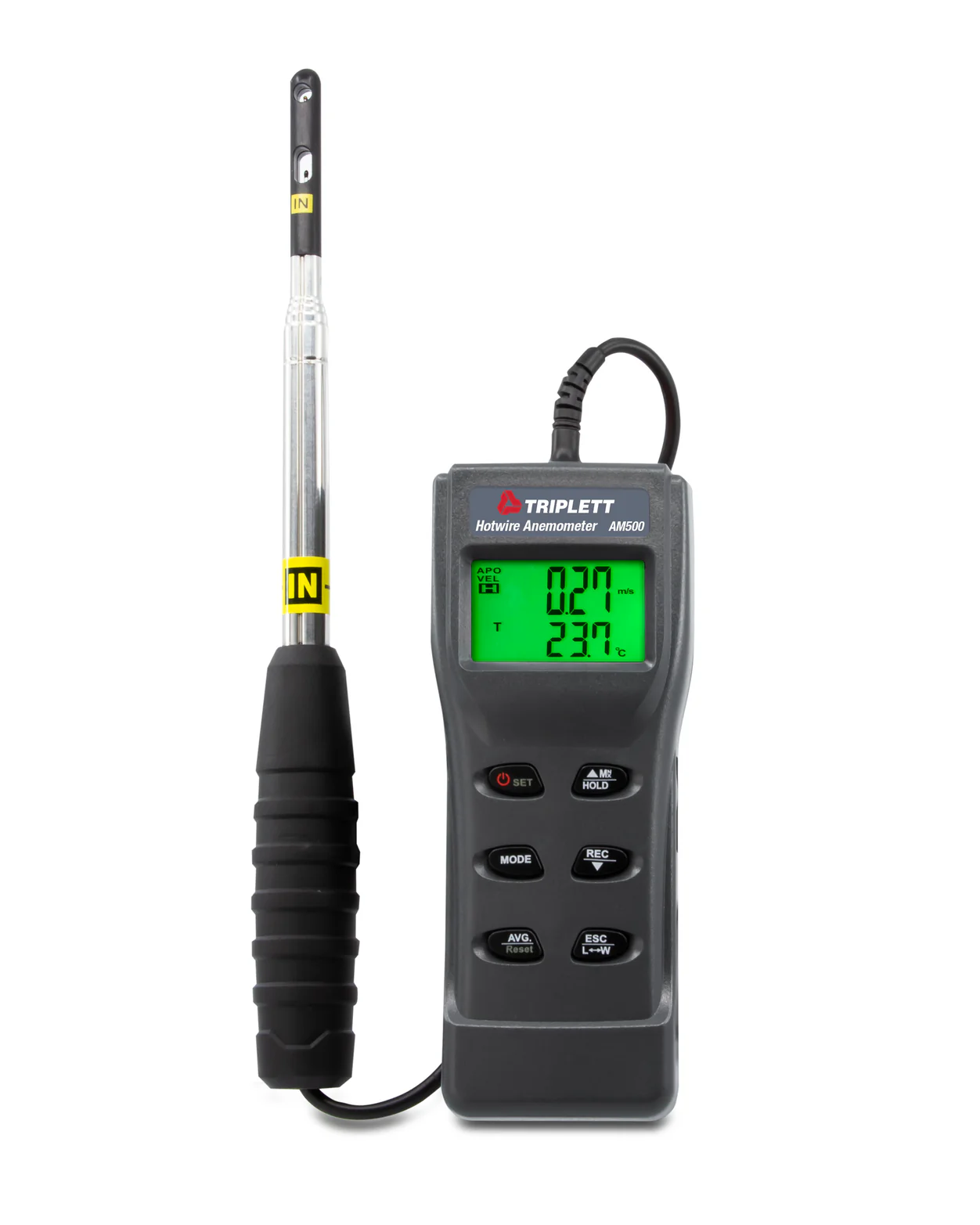

Hotwire Thermo-Anemometer (AM500)
BRAND : TRIPLETT
For More information Reach Us At : sales@syncwavecom.com

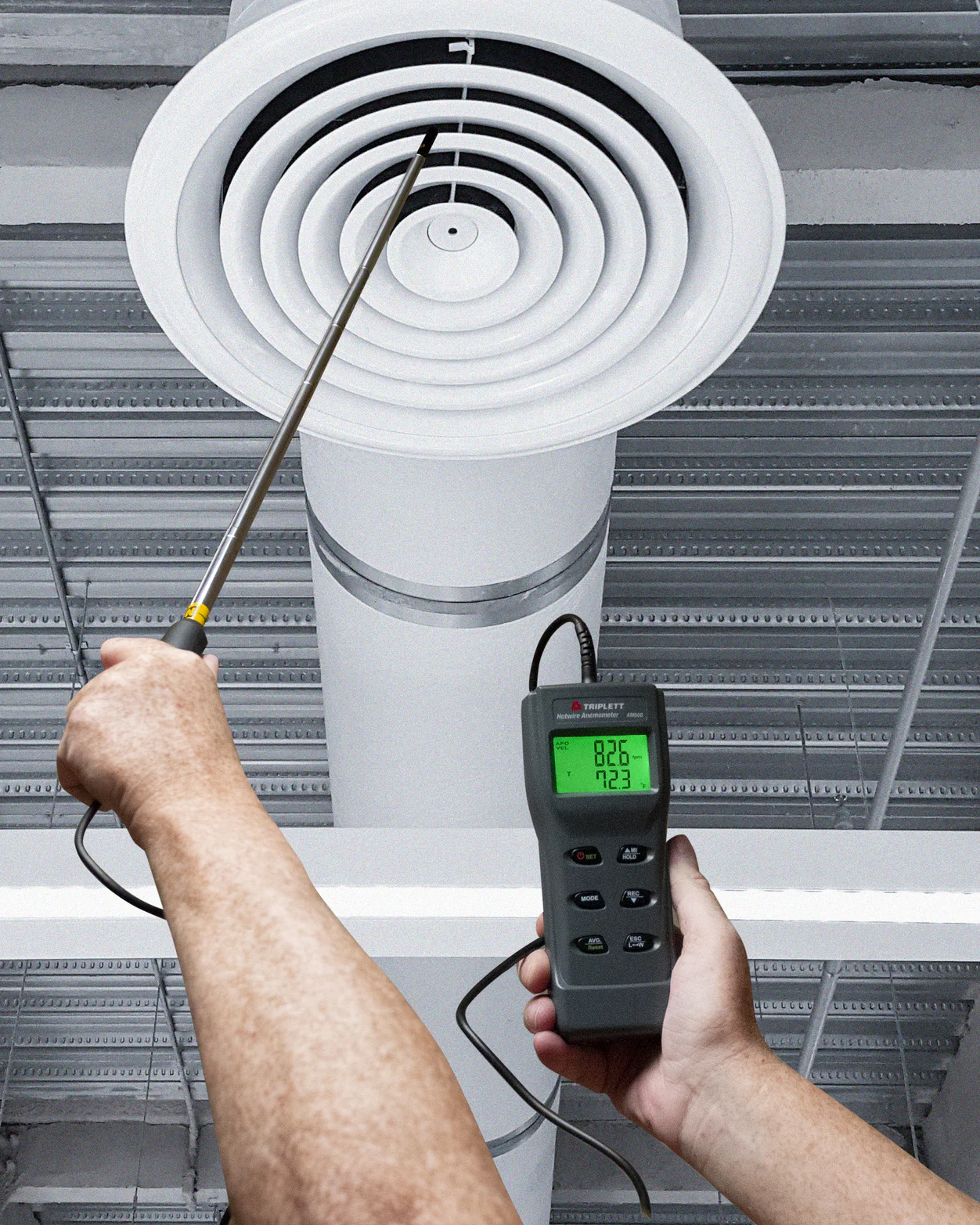

The Triplett AM500 Hotwire Anemometer uses a strong and precise airflow and temperature sensor to provide very accurate readings. The compact telecsoping probe head is ideal for ductwork. This micro-processor based design includes ATC (Automatic Temperature Compensation) and allows for accuracy on low flow (30ft/min) applications where traditional vane anemometers do not. It is a must have for any HVAC Engineer or Technician. Complete with telescoping probe with magnet,O-ring marker, hard carrying case and four 1.5V AAA - 1-year warranty.
AM500-NIST Comes with Certificate of traceability to NIST Standards
Please add 11 business days lead-time for the NIST calibration process
Simultaneously measures and displays Air Flow (CFM/CMM) or Air Velocity plus Temperature
Telescoping probe extends up to 3ft (0.9m) long; Probe Head Diameter: 0.3" (8mm)
Depth and Direction Indications (O-Ring and Markers)
Strong Magnet for mounting and hands free operation
Displays measurement in 2 modes as an instantaneous value or up to 20 point average
Display Modes include Normal; Min/Max; Time Average/Point Average
Large 1.7" LCD display with Backlight
Data Hold plus Auto Power Off with disable

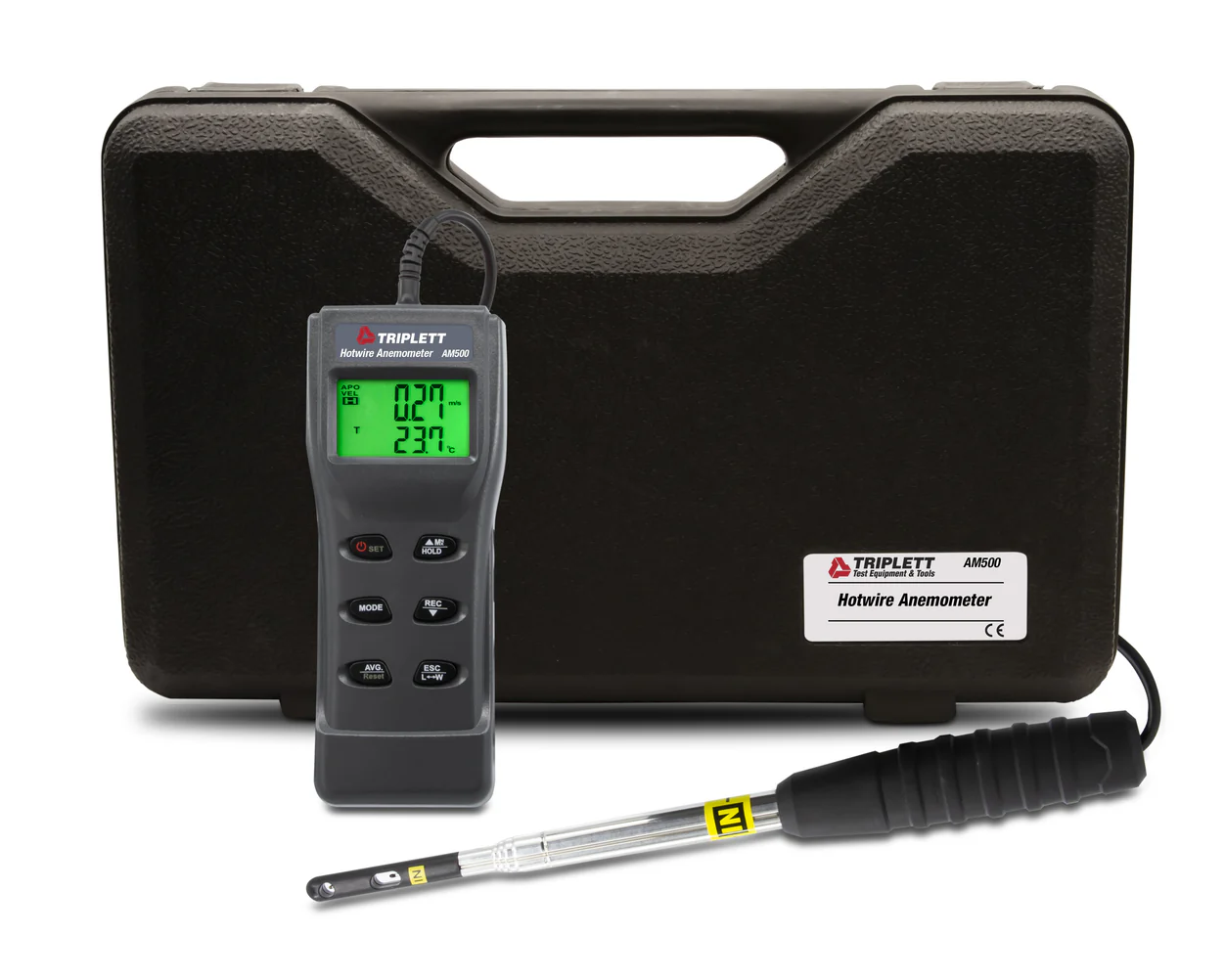

Includes telescoping probe with magnet,O-ring marker, hard carrying case, four 1.5V AAA batteries
1 year warranty
| AM500 |
Air Velocity | Range (resolution) |
ft/min | 30.0 to 3937ft/min (0.1ft/min) |
m/s | 0.15 to 20.00m/s (0.01m/s) |
Accuracy | ±5% |
Air Volume | Range (resolution) |
CFM / CMM | 0.1 to 99999CFM/CMM (0.1CFM/CMM) |
CMH / I/s | 0.1 to 99999CMH/I/s (0.1CMH/I/s) |
Air Temperature | 14.0 to 122.0°F (-10.0 to 50.0°C ) |
Accuracy | ±1.8°F/1°C |
Power | 4 x 1.5V AAA |
Dimensions | 6.9 x 2.6 x 1.3" (175 x 70 x 33mm) |
Weight | 11.7oz (331g) |
