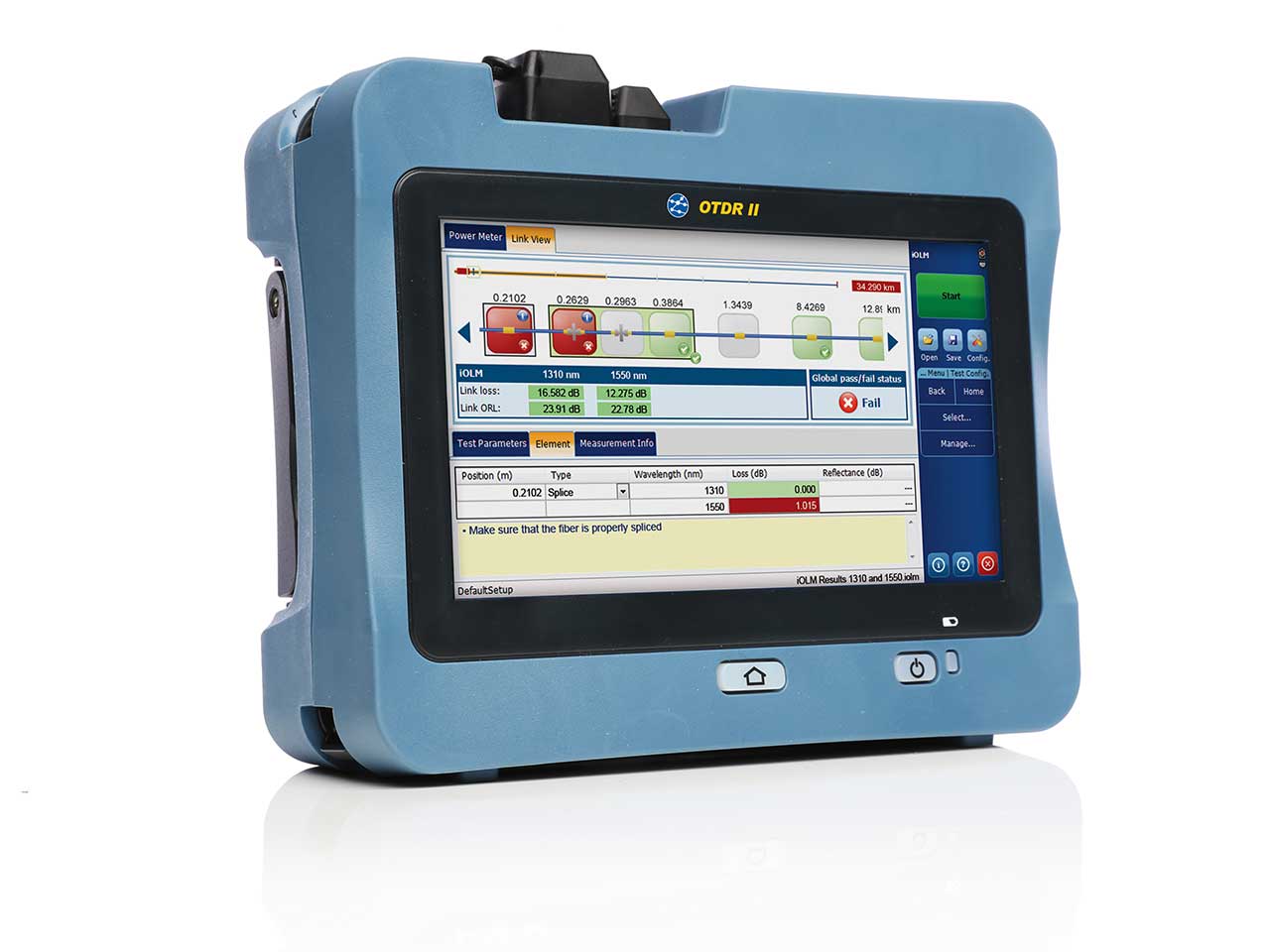

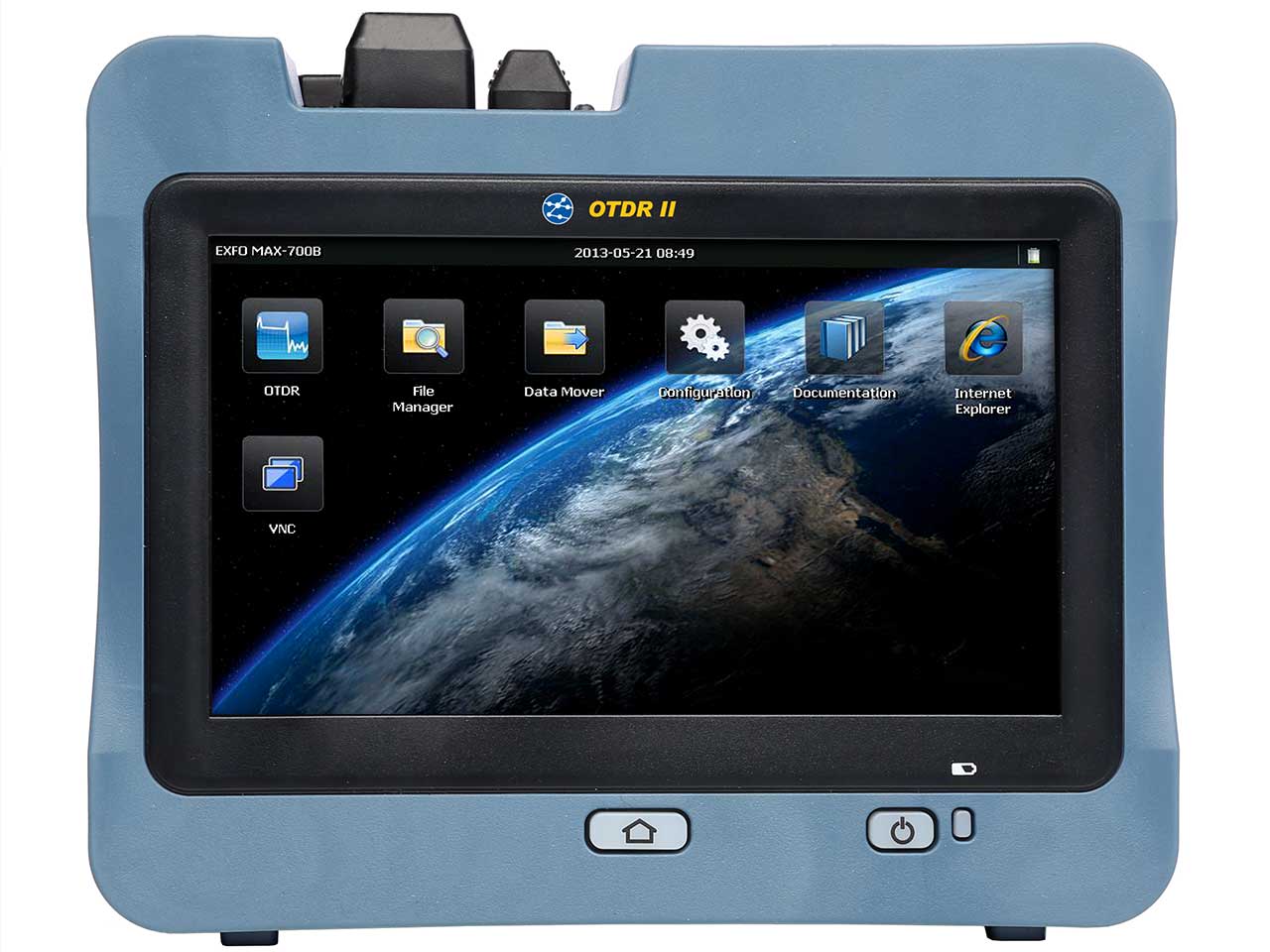

OTDR II TESTER

PRODUCT FEATURES:

iOLM (Intelligent Optical Link Mapper) – automatic configuration and multiple measurements on the same link provides the best possible measurements regardless of fibre configuration
Onboard PDF reporting
Macro bend detection
Short attenuation dead zone: MM: 2.5 m/SM: 3 m and event dead zone: MM: 0.5 m/SM: 0.7 m for accurate location and characterisation of events
Quad wavelength (850/1300/1310/1550) for both multimode and single-mode testing
Each fibre may be tested at two wavelengths in a single Autotest
Provides results in only a few seconds
Interchangeable fibre adapters with a wide variety of available configurations
Transfer test results to PC via USB flash drives or USB cable

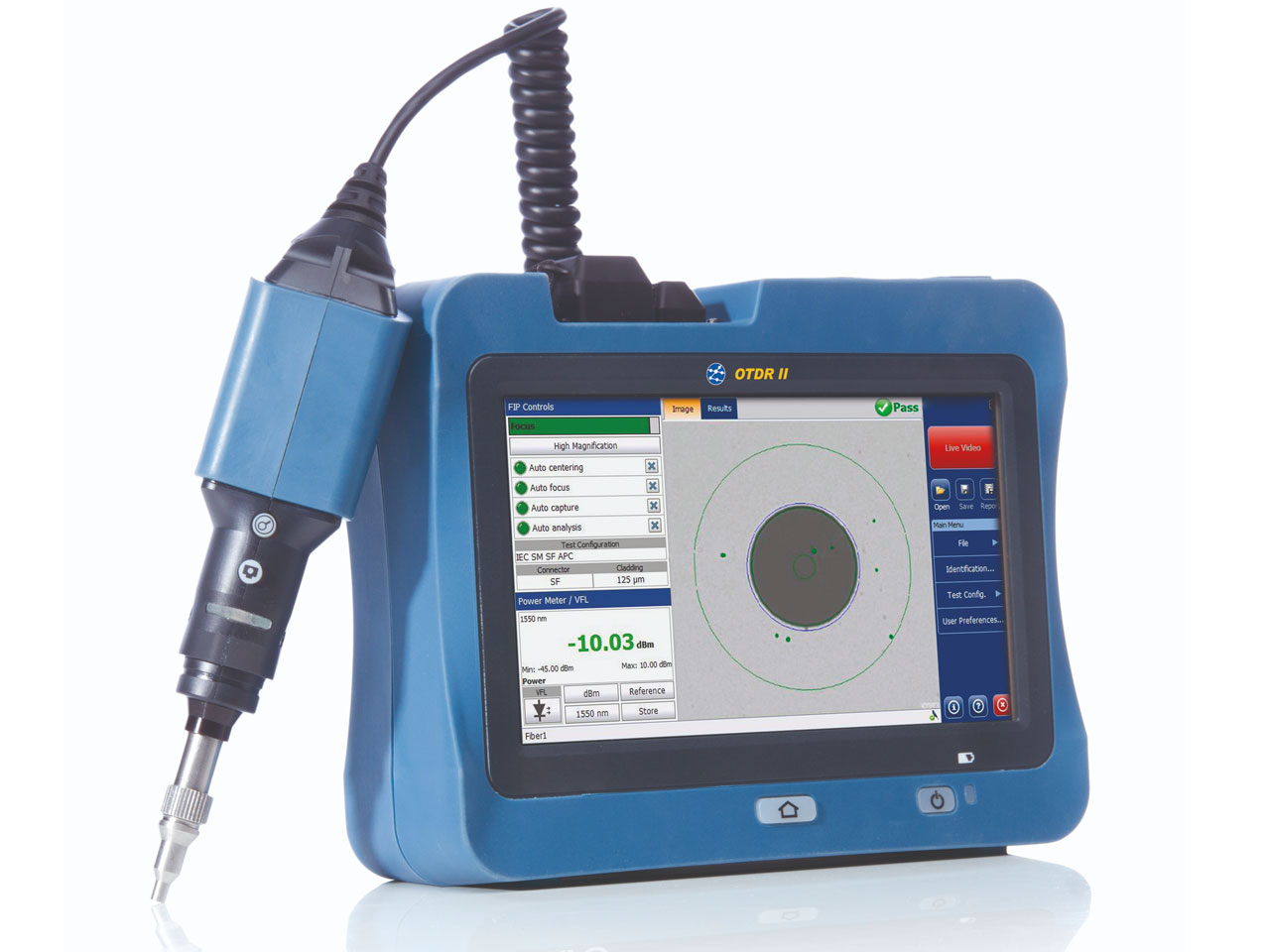

Optional video inspection micro scope to check connectors for cleanliness or damage
Provides simple PASS/FAIL results and macro bend detection in single-mode fibres that helps users identify bends or kinks in the cable, saving time during installation and troubleshooting
Small size for one handed operation
Rubber over-mould for enhanced drop protection
1 lithium-ion battery provides up to 12 hours operation
Warranty is 1 year and we recommend an annual calibration
Rugged carrying case for field use
