WaveMon RF-60

Personal Monitor E/H Fields

DATALOGGER

The WaveMon LF-400 is a low frequency exposimeter that has a datalogger for continuous data recording.

Communication with the device is through a USB port that allows you to configure the device and download the recorded data. This makes it easy to create reports and allows you to keep a record of your exposure data for your safety.

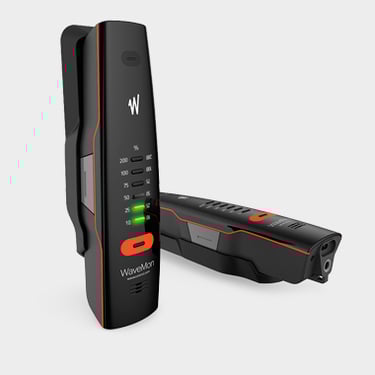

CONVENIENCE AND SECURITY

We have created an accessory that allows you to attach the personal monitor to your harness, arm or belt and so take it in hand to hold it near a radiation source and then put it back in place easily.

You can also secure it with a small carabiner so that it won’t be dropped.

BATTERIES

The device is small and lightweight and works with AA batteries that can be recharged via the USB port. It can also use standard AA batteries, so that they can always be easily replaced.

Easy, isn’t it? Because we want you always to be protected.

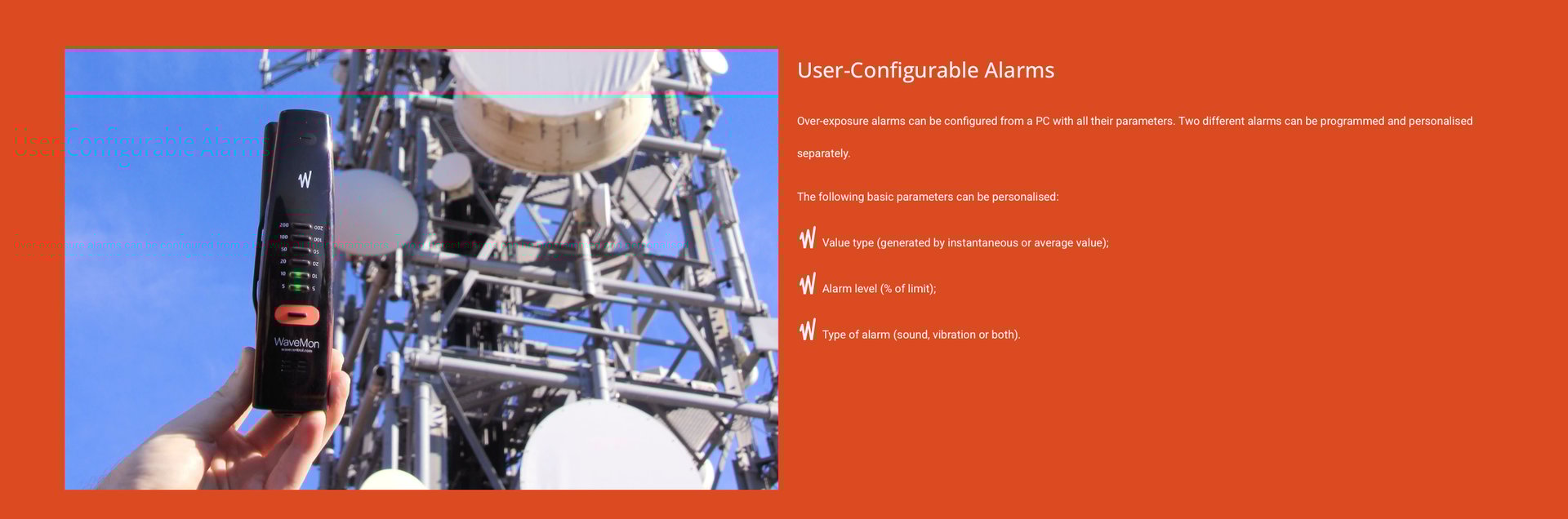

USER-CONFIGURABLE ALARMS

Over-exposure alarms can be configured from a PC using the USB connection.
Two different alarms can be programmed and personalised separately for each of the standards: General Public and Occupational.
The alarm level (% of the selected limit) and the type of alarm (sound, vibration or both) can be set-up.

MAIN CHARACTERISTICS OF THE WAVEMON RF-60

• Conforms to international electromagnetic field safety standards;

• E-field measurements up to 60 GHz and H-field measurements up to 1 GHz;

• Isotropic sensors;

• RMS detection;

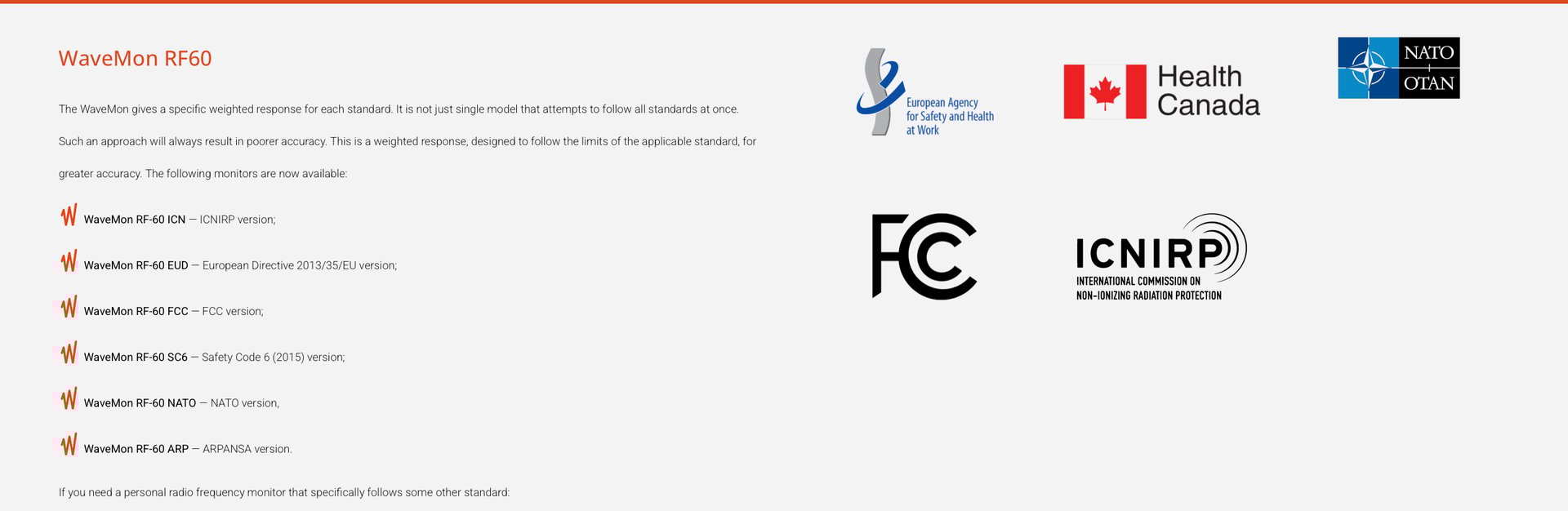

• Weighted response chosen from among ICNIRP, European Directive 2013/35/EU, FCC, Safety Code 6 (2015) and NATO, for direct comparison with the standard limit;

• Instantaneous and average values, according to international standards;

• High immunity at a 50/60 Hz: 30 kV/m;

• User-configurable alarms;

• High intensity audible, visible and vibration alarms;

• Customisable alarm threshold;

• Optional GPS and altimeter;

• Datalogger to report and record data;

• RF absorption to reduce reflections from the user’s body;

• USB for PC connection to parameterise and download data;

• Small and lightweight;

• Powered by 2 standard disposable or rechargeable (via USB port) batteries;

• Autonomy over 200 hours.
